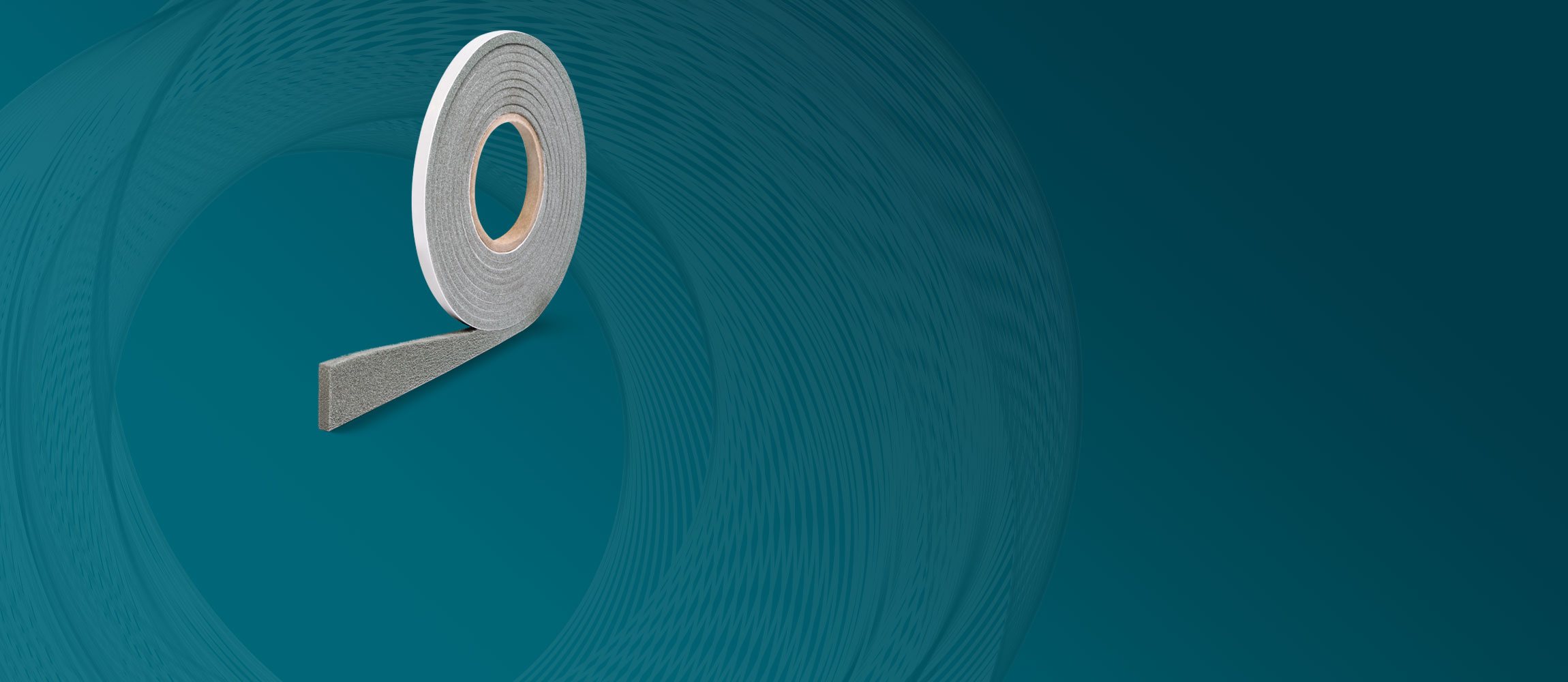

Hanno Schweiz: Hannoband®-BSB BG1 - fire-resistant fire protection tape

Hannoband®-BSB BG1

Product description

This special fire protection tape is flame-retardant in accordance with DIN 4102 T1 and can be used up to fire resistance class EI 120. Can also be used for directly weathered joints. For interior fire doors and partition walls, for fire-resistant windows and for forming joints between masonry elements to ensure fire resistance.

Tender texts

To the VKF fire protection register

Properties

joint sealing tape with acrylate dispersion impregnation specially formulated for fire protection
stress group BG1 DIN 18542:2009
for driving rain-proof expansion and connection joints in window construction ≥ 600 Pa
Joint permeability_at ≤ 1.0 m³/(h∙m∙(daPa^)2/3)
sd value ≤ 0.5 m
Colour: Light grey

Test certificates

DIN EN 1366-4 Fire resistance duration up to 120 minutes with double installation between masonry and masonry (see test report)
DIN EN 1366-4 Fire resistance duration 60 minutes with double installation between masonry and timber frame (see test report)
System test block frame 59 mm wide: 12 mm joint filled with ^{Hannoband®-BSB} BG1 fire protection tape 20/7-12. Remaining joint filled with ^Hanno® fire protection foam. Fire resistance duration: 36 minutes

System test Block frame 60 mm wide: 5-9 mm joint filled with 2 x Hannoband®-BSB BG1 fire protection tape 15/5-9. Fire resistance duration: EI 60 in accordance with DIN EN 13501-2
Building material class B1 flame retardant according to DIN 4102
Eurofins Product Testing A/S
Measurement of emissions

GEV - Gemeinschaft Emissionskontrollierte Verlegewerkstoffe, Klebstoffe und Bauprodukte e.V. - Certification with ^EMICODE® EC1PLUS

All Hanno® joint sealing tapes
