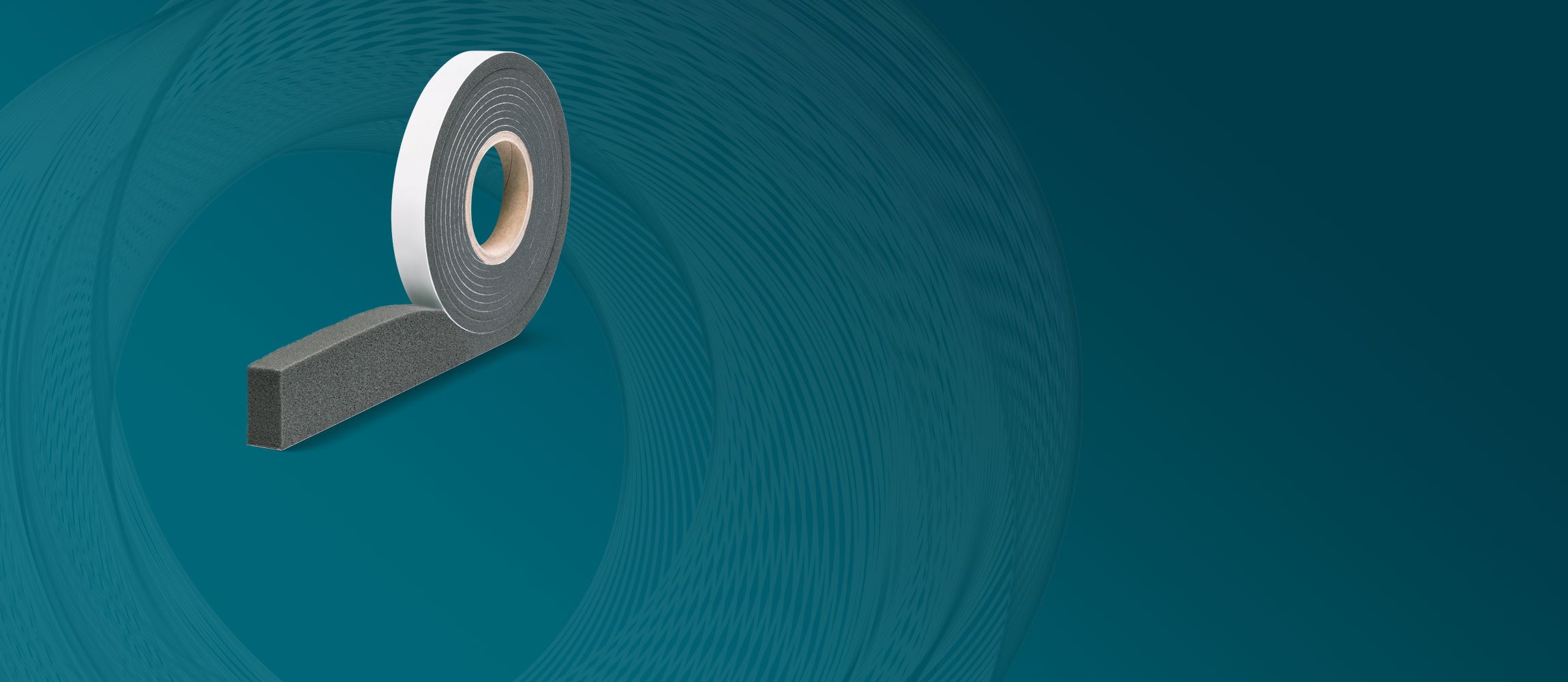

Hannoband®-HBD Premium
The HANNO product world
Product description
Schlagregendicht und witterungsbeständig. Dieses vielseitig einsetzbare Band eignet sich beispielsweise für Anschlussfugen, thermische Abdichtungen zwischen Blendrahmen und Mauerwerk, für Hinterfüllungen, Profilkopplungen und für Dachpfannenabdichtungen.
Hannoband®-HBD XL
Hannoband®-HBD erhalten Sie auch als Hannoband®-HBD XL in großen Rollenlängen. Dies hilft Verschnitt zu vermeiden und bei der schnellen Montage.
Product properties
- stress group BG2 - DIN 18542
- Impermeable to driving rain (up to 600 Pa - DIN EN 1027)
- Can be used as thermal insulation tape
Application areas
- Window construction
- Facade technology
- Interior fittings
- Pitched roof/flat roof
- Connection joints resistant to driving rain
- Thermal sealing
- Concrete construction
- Prefabricated building
- Decoupling
- Roof windows
- Roof tile waterproofing
- Ridge/ridge/groove/dormer
Processing
Please follow the assembly instructions
Cleaning
- Skin cleaning with soap and water. Impregnate and/or adhesive residues can be removed with a petrol-based cleaning agent. Please observe the safety instructions.
Delivery form
- Pre-compressed on rolls
- Can be equipped with self-adhesive
- Pre-compressed on rolls
Download area
| Data sheet "Hannoband®-HBD Premium" | ||
|---|---|---|
| German version | 792 KB | |
| English version | 802 KB | |
Environment
- Based on available data and experience, the product is not a hazardous substance within the meaning of the Hazardous Substances Ordinance and corresponding EC directives. However, we recommend observing the usual care and hygiene when handling chemical substances. Residues can be disposed of with household waste. Local regulations must be observed.
- The product complies with the following directives or fulfills the required restrictions on use: 1907/2006 (REACH), 2011/65 (RoHs2), 2015/863 (RoHs3), 2019/1021 (POP), 517/2014 (greenhouse gases), 2024/590 (depletion of the ozone layer).
| Property | Standard | Value |
|---|---|---|
| Color |
|
grau schwarz |
| Fire behavior | DIN EN 13501-1 | Klasse E bis bmax* |
| Joint permeability coefficient | DIN EN 12114 | a_{n} < 1 m³/ (h m [dPa]⅔)* |
| Driving rain tightness |
DIN EN 1027 DIN EN 1027 |
≥ 300 Pa* ≥ 600 Pa* |
| stress group | DIN 18542 | BG2* |
| Thermal conductivity | DIN EN 12667 | 0,0396 W/(m K) |
| Compatibility with adjacent building materials | DIN 18542 | gegeben |
| Temperature resistance |
DIN 18542 |
Anwendung: +60 °C* - 30 °C bis + 100 °C, kurzzeitig bis + 130 °C |
| Water vapor diffusion | DIN EN ISO 12572 | sd < 0,5 m |
| Emissionen | EMICODE® | EC1^{PLUS} |
| Storage stability | - | 24 Monate ab Produktionsdatum |
| Footnote_(*) | - | (*) in Abhängigkeit von Fugenbreite und -tiefe |
| Dimension /bmin - bmax |
Rollenlänge [m] | Einsatzbereich Fugenbreite bmax [mm] * | |||||
|---|---|---|---|---|---|---|---|
| HBD | HBD XL | DIN EN 1027 600 Pa |
DIN 18542 Beanspruchungsgruppe BG2 |
DIN EN 1027 300 Pa |
Zugluft-/Staubabdichtung |
Wärmedämmung |
|
| x/1,5-3 | 18 | 36 | 2 | 2,5 | 3 | 5 | 8 |
| x/2-5 | 12 | 20 | 3 | 4 | 5 | 8 | 13 |
| x/3-9 | 6 | 12 | 6 | 7 | 9 | 15 | 24 |
| x/5-12 | 5 | 10 | 8 | 10 | 12 | 20 | 32 |
| x/7-15 | 5 | 10 | 10 | 12 | 15 | 25 | 40 |
| x/8-19 | 4 | 8 | 12 | 15 | 19 | 30 | 50 |
| x/10-24 | 3 | 5 | 16 | 19 | 24 | 40 | 65 |
| x/3-5 | 9 | 18 | 4 | 5 | 5 | 10 | 16 |
